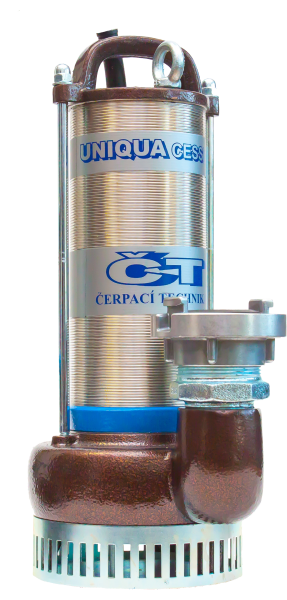

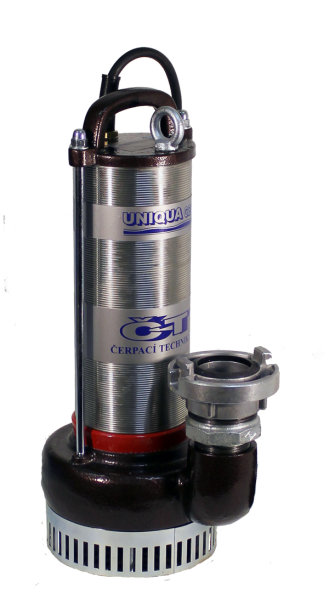

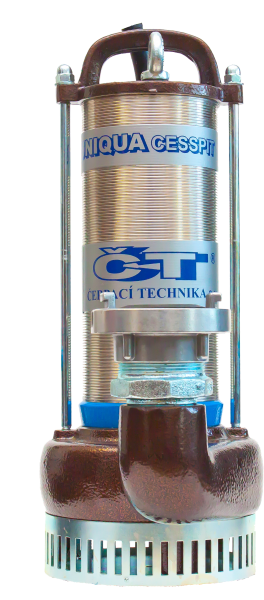

UNIQUA CESSPIT J20S
Voltage | 230 V |

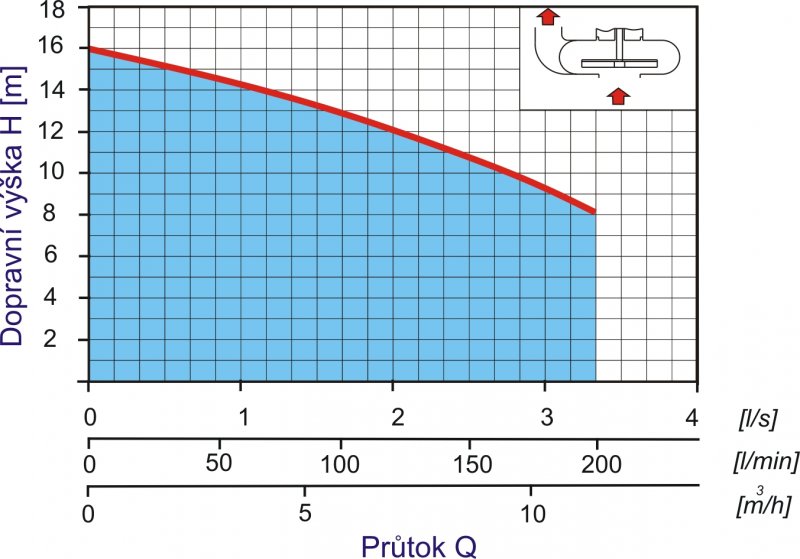

Max. pump head | 16 m |
Max. flow rate | 210 l/min |
Max. immersion | 6,5 m |
Nominal current | 5,2 A |
Diameter suction housing | 6/4-C3 " |
Weight | 16 kg |
Technical specifications
- submersible sludge single-stage pump
- stainless steel and cast iron construction
- carbide mechanical seal SiC/SiC
- oil casing
- cast iron open impeller of type VORTEX(VOX)
- opennes to solid particles up to 20 mm in size
- asynchronous electric motor with thermal winding protection
- cable 10 m
Use
- pumping sludge pits
- pumping cesspools and septic tanks
- pumping tanks and swimming pool
- irrigation system
Submersible sludge pump UNIQUA CESSPIT is used for transferring and draining water, sediments and feces. To use the pump for pumping flammable liquid, toxic liquid substance (acid, alkali) is forbidden! To use the pump in a place with a threat of explosion is forbidden too. The producer can make pumps with a different length of cable compliance according to the wish of a costumer. The pumps can by used in vertical, horizontal or tilted position.
Construction
The pump UNIQUA CESSPIT has an electric motor together with a rotor, which create a compact hermetic piece with suction hole located at the bottom of pump. The pump is single-stage with impeller of type Vortex. The electric motor is single-phase, asynchronous and is protected against penetration of the pumped liquid by a mechanical seal, an oil casing (filled with rafined rape oil) and a lip seal. The motor is fitted with a thermal winding protection against overheating (the motor is also protected against destruction for a short time). The connect cable is perfectly sealed by a special bushing and is protected against penetration of the pumped water. The user is obligated to protect the motor against overload by a current circuit breaker (see the connection diagram). The product is protected by the utility model and patent.
